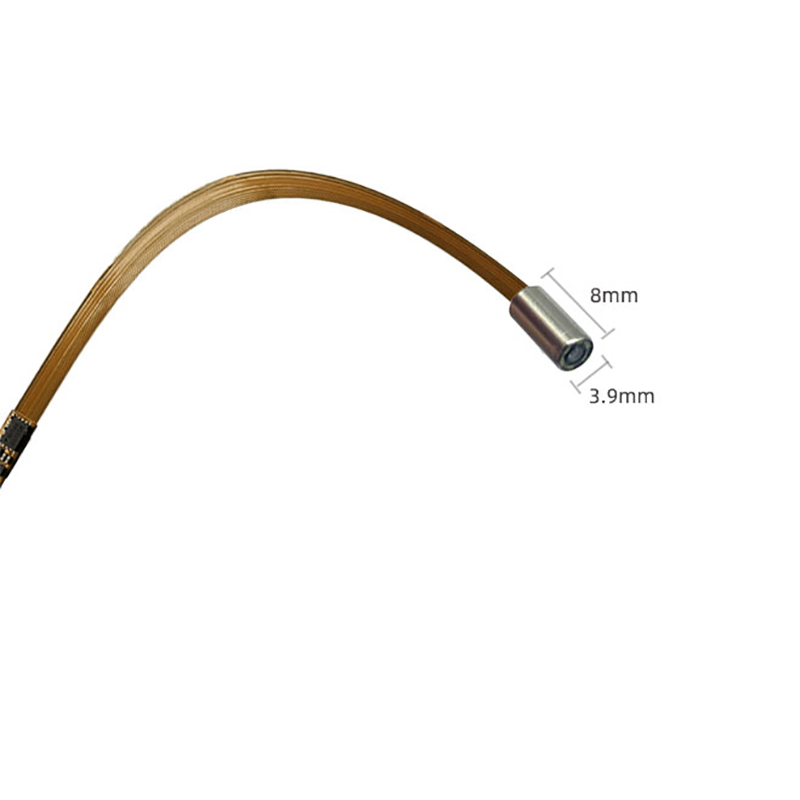

Intelligent Robot Camera Module
【Core Positioning】 Tailor-made for various intelligent robots, this core vision component integrates high-definition imaging, intelligent perception, and stable transmission. It empowers robots to achieve core functions such as environmental recognition, path planning, and remote monitoring. Widely compatible with service robots, industrial robots, security robots, and other models, it is a core hardware solution for enhancing robot intelligence.
EZON - Ten Years of Professional Endoscope Camera Modules
If you have any related product needs, please contact us. Our professional technical team will provide you with suitable solutions.
Product Structure: Precision Integration, Stable and Reliable
This intelligent robot camera module adopts a modular integrated design with a compact structure. Its core consists of four precision components, balancing lightweight design with anti-interference performance, and is suitable for the limited installation space within robots:
High-Definition Imaging Component
Equipped with an industrial-grade CMOS image sensor and a high-transmittance lens, this 1-megapixel lens offers four viewing angles: 75°, 88°, 100°, and 140°. Different viewing angles correspond to different focal lengths, ensuring clear and detailed imaging at various distances and providing a high-quality image foundation for robot visual perception.
01
Intelligent Processing Chip
Built-in high-performance DSP image signal processor, supporting real-time image noise reduction, color correction, and distortion correction, enabling rapid image capture.
02
Stable Transmission Module
USB 2.0 interface, 30fps transmission frame rate, 44dB signal-to-noise ratio, ensuring real-time image data synchronization and adapting to the communication protocol requirements of different robots.
03
Protection and FPC Structure
The shell is made of stainless steel with an anti-static treatment, achieving an IP67 protection rating, resisting dust and minor water stains. The lens and DSP are connected via an FPC flexible cable, reducing component heat generation and providing greater flexibility.
04
Wide Application: Full-Scenario Adaptability, Empowering Multiple Robot Categories
With high compatibility and scene adaptability, this module can seamlessly connect to various intelligent robots, covering multiple core fields such as home, commercial, industrial, and security.
robotic arm
Suitable for industrial robotic arms and finger robots.
Industrial Robots
Adaptable to industrial inspection robots, handling robots, assembly robots, and warehouse sorting robots.
Security Patrol Robots
Suitable for park/residential security robots, substation inspection robots, and border patrol robots.
Specialty Robots
Compatible with fire rescue robots, underwater exploration robots, and agricultural plant protection robots.
Product Advantages
Supports multiple systems including Windows and Android, standardized UVC protocol, and USB 2.0 interface, allowing for quick adaptation to different brands and models of intelligent robots, reducing secondary development costs and expanding applicability.
Passes multiple environmental tests including high and low temperatures (-20℃~80℃), vibration, dust and water resistance, achieving an IP67 protection rating, suitable for long-term operation in industrial and security scenarios, reducing after-sales maintenance rates.
Equipped with a new generation CMOS sensor and DSP chip, it boasts excellent performance in high-definition imaging and intelligent processing. Optimized manufacturing processes result in more competitive pricing for bulk orders, helping sellers enhance product competitiveness.
Compact module size (minimum size 3.5*3.5*15mm), weighing only 15g, adopts a standardized fixing structure for easy assembly and disassembly, adapting to limited internal installation space in robots and reducing the overall design complexity of the robot.
We support customization of lens angle, transmission interface, infrared function, and appearance dimensions according to customer needs, meeting the personalized requirements of different customers and enhancing product differentiation.
This product complies with international certification standards such as CE, FCC, and RoHS.
Professional Technical Team and Comprehensive After-Sales Service: Our professional technical team provides 24/7 online support to solve technical problems encountered during installation, debugging, and development.
