Industrial Pipe Wall Testing Tools
Industrial Pipe Wall Inspection Tool | Minimum Fit Φ8mm Pipe Diameter | Dedicated Non-Destructive Testing Equipment for Pipe Walls
The EZON EZ-EN40SV-RT features a side-view optical solution, emphasizing close-focus high definition and an ultra-wide viewing angle. The probe can smoothly enter narrow pipes with a minimum inner diameter of 8mm, providing 90° side imaging without the need for repeated probe adjustments. Specifically designed for industries such as precision equipment, industrial castings, shipbuilding, and pressure vessels, it offers a one-stop solution for detecting internal pipe corrosion, cracks, weld defects, blockages, and foreign objects, achieving non-disassembly, non-destructive, and visually efficient inspection.
Product Features
✅Dedicated Close-Focus Optics for High-Definition Defect Identification at Close Range:
The lens optics system is optimized for close-focus operation, with a minimum observation distance of 5mm. It clearly captures minute cracks, pinholes, weld beads, and burrs on the pipe wall without blurring, and clearly identifies micron-level defects, eliminating missed detections and misjudgments.
✅140° Wide-Angle Side View for Wider Pipe Wall Coverage in a Single Insertion:
The 140° wide-angle side view design significantly expands the observation range compared to conventional side-viewing endoscopes. It halves the number of steps required to observe the pipe wall, significantly improving inspection efficiency. There are no blind spots in the observation of bent pipes and pipes with varying diameters.
✅Minimal Access Size, Can Reach Pipes as Small as Φ8mm
The probe has strong outer diameter adaptability, allowing insertion into pipes with an inner diameter as small as 8mm.
✅ 90° Fixed Side-View Structure, Dedicated for Pipe Wall Inspection
Side-mounted vertical pipe wall imaging eliminates the need to rotate the probe to adjust the observation angle. Simply align the probe with the pipe wall to directly observe typical pipe wall defects such as longitudinal/circumferential cracks, inner wall thinning, and weld incomplete fusion, offering far greater targeting than direct-view endoscopes.
✅ IP67 Protection for the Entire Probe, Stable Operation in Harsh Conditions
The probe and insertion pipeline are IP67 waterproof, oil-proof, dustproof, and acid/alkali resistant, ensuring stable imaging even in environments with oil, water, moisture, and dust.
✅Complete Data Retention, Traceable Inspection Reports
USB interface, compatible with Windows systems above XP and some Android systems, but not iOS. Real-time screen preview, local storage of photos, videos, and images, with exportable archives to meet quality inspection and maintenance archiving requirements.
✅ Lightweight, handheld, integrated design for independent single-person operation.
The portable, integrated design allows for immediate use without external auxiliary equipment. Single-person deployment and testing are possible, significantly reducing downtime and overall maintenance costs.
Product Parameters
Product Model: EZ-EN40SV-RT
Resolution: 720P
FOV: 140°Depth of Field Range: 5-100mm
Protection Function
Applicable Tube Diameter Range: Φ8 mm～Φ40 mm
maging Method
90° Side Observation (Dedicated Side-View Lens for Tube Walls)
Close-focus high definition + wide-angle field of view
pecifications: Click the link in the image below to go to the purchase page.
Head Tube Specifications

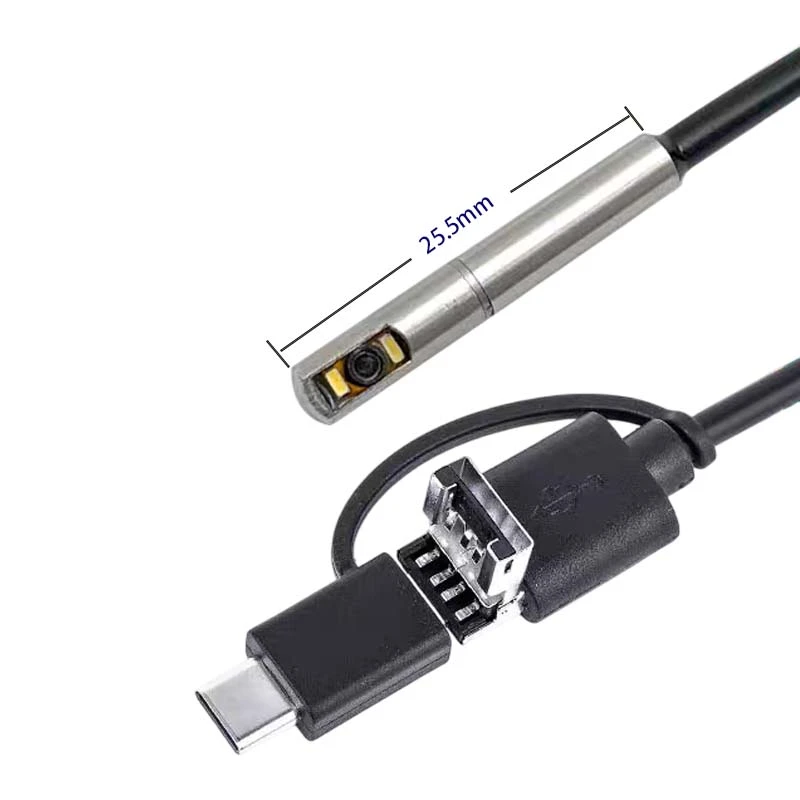

25.5mm short tube

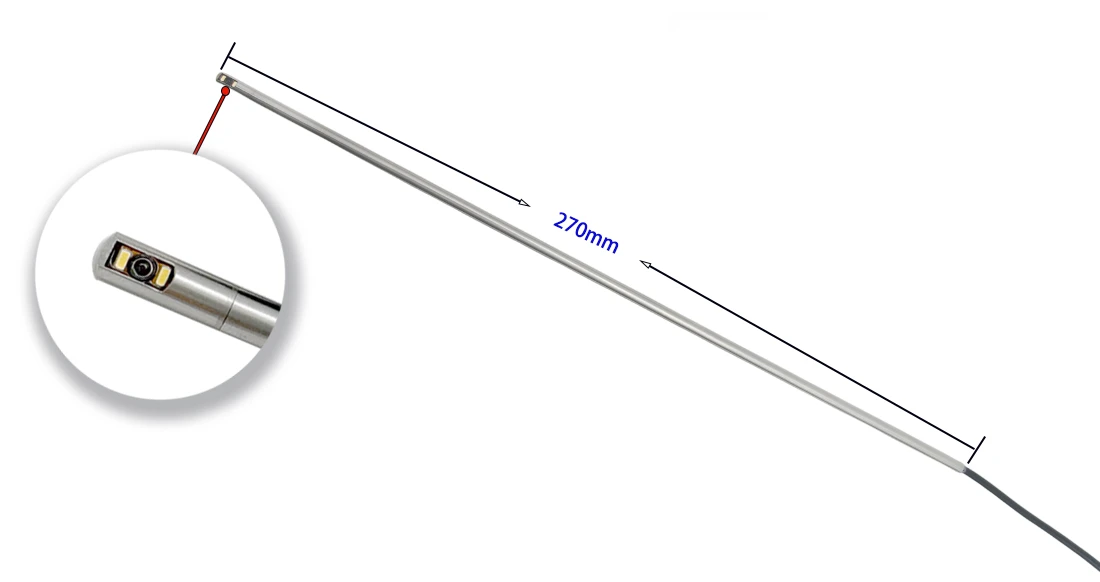

270mm long tube
270mm with handle
Standard Insertion Tube Length: 1.5m/2m/3m/5m
Illumination Configuration: 2 high-brightness LED side-mounted supplementary lights, adjustable brightness
Applicable systems and others
Applicable Systems: Windows system, some Android systems supporting OTG, iOS not supported
Probe Protection Rating: IP67 (waterproof, oil-proof, dustproof)
Core Functions: Real-time image preview, still photography, video recording, local saving
Operating Ambient Temperature: -10℃ ～ +70℃
Observation Depth of Field: Optimized depth of field for close-focus observation, clear imaging of the tube wall at close range throughout.
Industrial Pipe Wall Inspection Tools Applicable Industries
Pipe wall corrosion, thinning, pitting, and pitting
Pipe wall cracks, longitudinal cracks, and circumferential cracks
Pipe weld quality, weld beads, lack of fusion, and porosity
Internal pipe scaling, blockage, foreign matter, and deposits
Internal pipe wall scratches, deformation, and oxide layer
In-service inspection of boiler tubes, heat exchanger tubes, condenser tubes, and heat exchange tubes
EZON is a Chinese company specializing in the design, development, and manufacturing of endoscope modules. We possess professional solutions in the fields of electronic design, mechanical control, and image processing for endoscope modules. EZON endoscopes are mainly used in various industrial fields, such as for high-definition non-destructive inspection of hard-to-access cavities in automotive engines, pipes, and mechanical parts, as well as for related medical examinations. Our products are waterproof and high-temperature resistant, available in a variety of specifications, and in addition to standard products, we can also customize products according to customer needs.
Years of dedicated R&D and manufacturing experience in industrial endoscopes; mature and stable technology.
Fully independently developed and manufactured, offering superior cost-effectiveness.
Modular design for simple and portable operation.
Vision
A professional technical team provides comprehensive pre-sales and after-sales support and guarantees.
