Ultra-thin Endoscope Inspection Camera
As a Chinese local enterprise that has been engaged in R&D and manufacturing of professional camera products for more than ten years, EZON focuses on the design and manufacturing of endoscope camera products. The company is well aware of the importance of product quality, so it has been continuously studying product technology for many years. We strive to provide customers with better products from multiple perspectives such as specifications, clarity and applicability.
Product Introduction

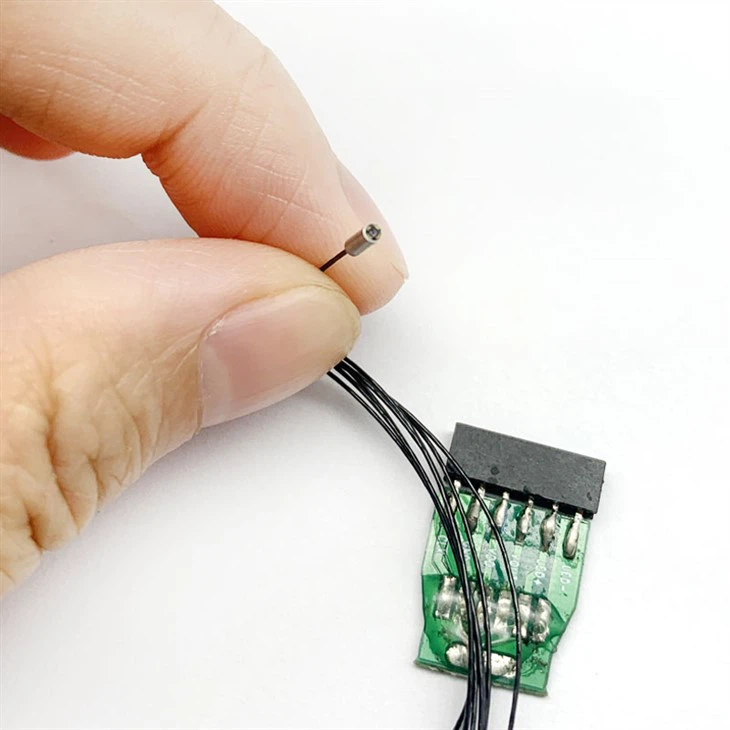

This is an endoscope module with a lens diameter of only 1.4mm, which is one of the smallest medical endoscope modules currently sold by our company on the market. The sensor used is OMNIVISION's OCHTA10-KL1C, 1/31'', CMOS, and the camera module resolution is 400 x 400. The field of view is 120°, and the viewing range is wider at large angles. The product is divided into two parts: camera and decoding board. The optimal depth of field range is 3-100mm, suitable for macro shooting. The resolution is improved at 30 frames per second.
The biggest feature of this endoscope is its small size, which can be used in various types of medical examinations, such as neurology, ophthalmology, otolaryngology, cardiology, spine, urology, gynecology and arthroscopic surgery, as well as Dental and veterinary diagnostics and surgery. It can also be used for production inspection and ultra-small aperture inspection in various industrial fields. The products are widely used, easy to use and have clear images.
product Parameter(specification)
|
OCHTA10-LK10 1/31''CMOS |
|
|
Specifications and dimensions |
Lens diameter 1.4mm, length 4mm |
|
Resolution |
400*400P |
|
Field of view |
120° |
|
Depth of field |
3-100mm |
|
Wire |
1.5m soft wire |
|
Light source |
4LED |
|
Shooting |
can take photos and videos |
|
Waterproof |
IP67 waterproof and oil proof |
|
Applicable systems |
windows, Android OTG |
product feature and application
This is one of the smallest endoscope camera modules we sell, with a camera diameter of only 1.4mm, making it ideal for hard-to-reach places and corners. The lens is IP67 waterproof and can penetrate wet or underwater environments.
The biggest feature of this endoscope is its small size, which can be used in various types of medical examinations, such as neurology, ophthalmology, otolaryngology, cardiology, spine, urology, gynecology and arthroscopic surgery, as well as Dental and veterinary diagnostics and surgery. It can also be used for production inspection and ultra-small aperture inspection in various industrial fields. The products are widely used, easy to use and have clear images.
Frequently Asked Questions
What other specifications are available for ultra-thin endoscope cameras with similar specifications?
+
-
Our smallest endoscope camera with an LED light has a diameter of only 1.0mm, and our smallest endoscope camera without an LED light has a diameter of only 0.65mm. We also offer a variety of specifications, including 1.2mm, 1.4mm, and 1.5mm long tubes, as well as 1.6mm, 1.8mm, and 2.0mm tubes. These can meet the needs of various tube diameters.
What systems is this endoscope compatible with?
+
-
This endoscope uses the standard UVC protocol and is compatible with Windows XP and above, as well as some Android systems that support OTG. It does not support iOS.
How do I use this endoscope?
+
-
It is very easy to use. Simply install the app on the device you are using, connect the camera and the decoder terminal, connect the USB port to the device you are using, and open the app to start exporting images directly.
Do you support custom development?
+
-
We are an integrated company specializing in product development and production. We have a professional technical team. Simply share your product requirements and specifications with us, and our engineers will assess the feasibility of your needs.
How can I purchase a sample?
+
-
If the product meets your needs, you can place an order in our AliExpress store and enjoy multiple discounts.
AliExpress store address:http://www.aliexpress.com/store/1103144014
