Mini Endoscope Camera
Ezon is a professional enterprise engaged in the development, manufacturing and sales of industrial endoscopes. Our company has many years of industry experience and technical strength, can provide customers with high quality products and excellent service.

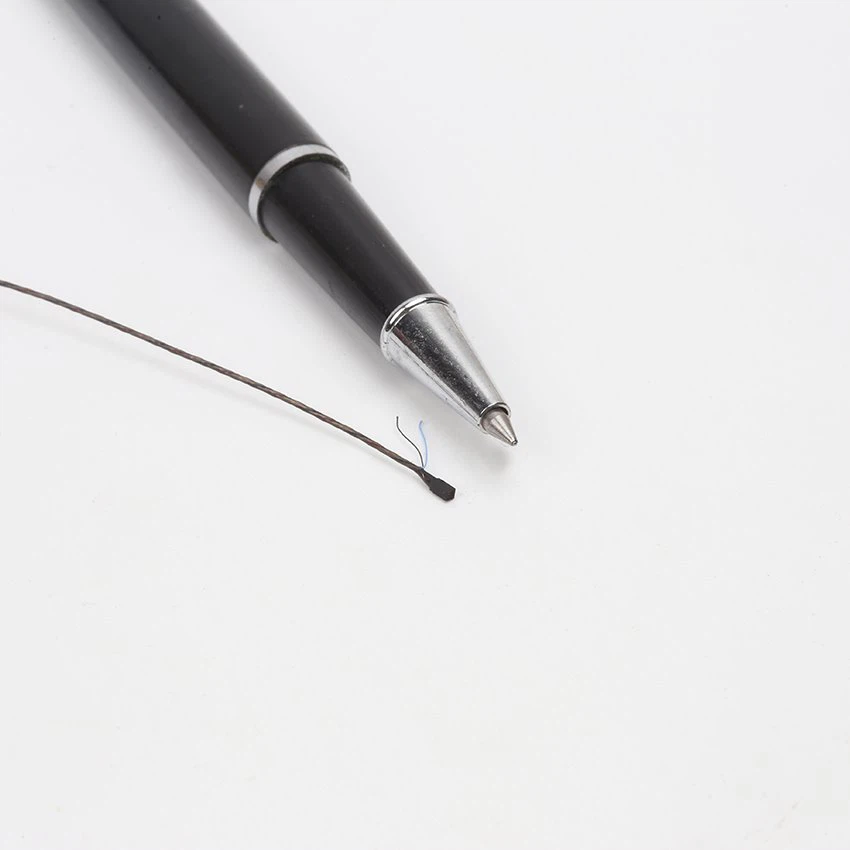

This MINI endoscope camera module uses a CMOS OV6946 sensor with a resolution of 400*400. The endoscope camera module has an outer diameter of 1.05mm without LEDs. The FOV (diagonal) is 120 degrees and the depth of field is 3-100 mm. The cable diameter is 0.6mm and the maximum cable length is 3 meters. The endoscope camera module can support AV and USB output.
The endoscope camera module can support Windows and Android systems.
The product uses OMNIVISION's OV6946 sensor, which can bring high-quality images and videos with excellent color fidelity to endoscopes. The 1/18-inch sensor's compact 0.9 x 0.9 mm package, wide field of view, short focal length, and low power consumption make it an ideal camera solution for medical and industrial applications.
|
Module No. |
OV6946 |
|
Sensor Type |
OV6946,1/18” CMOS |
|
Max Resolution |
400*400 |
|
White Balance |
Advanced/manual |
|
S/N Ratio |
>45dB |
|
Fov |
120°±15% |
|
Best Working Distance |
7mm |
|
Depth Of Field |
3-100mm |
|
Decoder Board |
|
|
Hot Swap |
support |
|
Support |
USB UVC |
|
Video Stream Fomat |
MJPG YUY |
|
Work Voltage |
DC3.3-5V |
|
Power Consumption |
210mA±10mA |
|
Operating temperature |
<-10℃ to +60℃> |
Ultra-small diameter, with three-in-one cable, in line with UVC plug and play, convenient and fast. It can be applied to tiny pipeline detection, medical experiments, etc.
Pre-sales service: professional customer service and technical team provide you with all-round solutions, you only need to tell us your product requirements, and leave the rest to us.
Product delivery: quality and quantity delivered on schedule
After-sales service: No matter what problems you encounter during the use of the product, our customer service and technical team will solve it for you carefully.
We not only provide endoscope solutions, you can apply our modules for secondary development to medical or industrial endoscopes. We also provide endoscopic inspection mirrors for end-user use, which you just need to connect to your computer or Android phone to use.
At the same time, if our existing products cannot meet your product needs, we also provide special customization services, including chips, lenses, PCB boards, connecting wires, etc.
