4.5 mm endoscope camera
video

4.5 mm endoscope camera

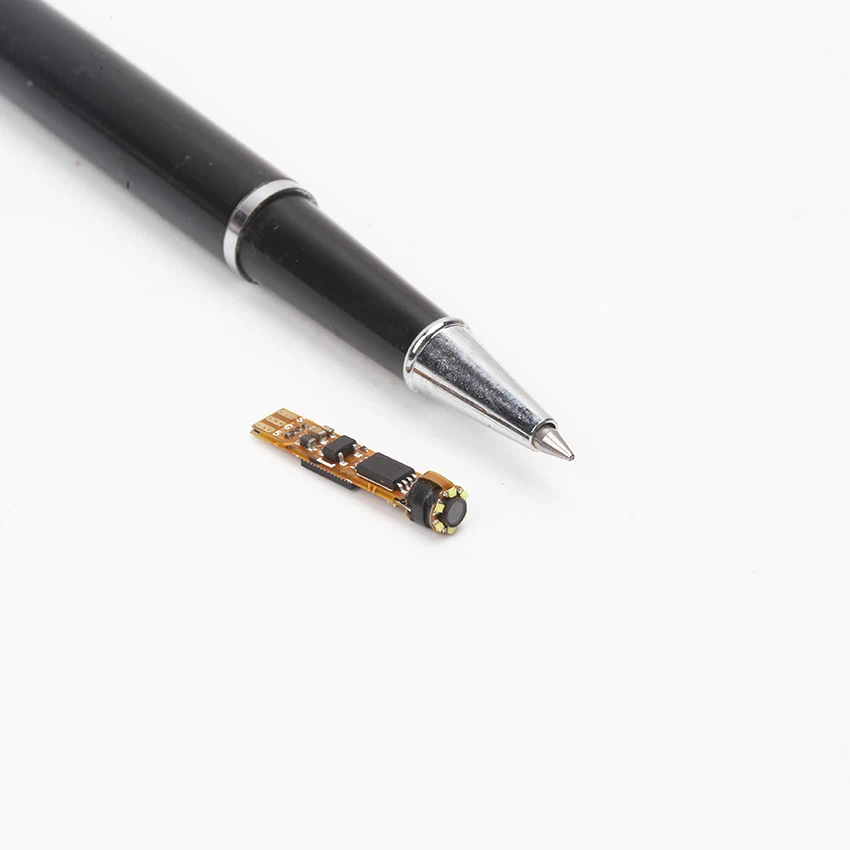

This is a USB endoscope module with a diameter of only 4.5mm, with 6 bright LEDs on the head and a resolution of 1MP. This camera module is very small, with a size of only 9mm × 4.5mmX4.5mm. No matter how small the space is, you You can put it in almost any device/device.
Send Inquiry
Product Introduction

Ezon is a professional enterprise engaged in the development, manufacturing and sales of industrial endoscopes. Our company has many years of industry experience and technical strength, can provide customers with high quality products and excellent service.



This is a 4.5mm endoscopic camera with a lens diameter of only 4.5mm, 6 bright LEDs on the head, and a resolution of 1MP. This camera module is very small, measuring only 9mm×4.5mmX4.5mm. You can fit it into almost any device, no matter how small the space.

This is not only a camera module, but it can also be packaged as a 4.9mm sealed tube endoscope, which can be used by technicians for secondary product development.



Product Parameter (specification)



Module No.

EZ-EN45S-RT

Sensor Type

OV9734(1/9” )

Sensitivity

1.0 V/(Lux·sec)

Pixel Size

1.4 μ m x 1.4μ m

Video Stream Fomat

MJPG ,YUY2

Max Resolution

1280X720

Maximum Image Transfer Rate

MJPG: 640X480 (30fps) 960X720 (30fps)

1280X720 (30fps)(default)

YUY2: 640X480 (30fps) 960X720 (15fps)

1280X720 (10fps)

S/N Ratio

44dB

Dynamic Range

68DB

Min Lux

0.03Lux

FOV

75°/88°/100°(optional)

Relative Illumination

55%

IR Filter

650±10nm



Product Feature And Application



They are suitable for industrial video endoscopes, pipe detection endoscopes, and motor vehicle inspection endoscopes、 cylinder inspection, video fishing camera, underwater camera, ENT endoscope, oral endoscope, medical endoscope, throat endoscope, etc. This product mainly has characteristics of small size, low power consumption, clear imaging effect, etc.



Service Assurance



Strict management, first-class products and perfect after-sale service insures that you can set your heart at rest to order and use our products.

◐ Favorable Price

◐ No Minimum Ordered Qauntity

◐ Low Engineering Cost of Customization

◐ Short Customization Cycle

◐ Lifetime Technical Support



Customization Service



We can provide you with only the camera module, or with a housing. Camera lens specifications range from 1mm to 10mm to meet your needs for different products.
