Weapon Endoscope

Weapon endoscope is a special endoscope used to inspect the internal structure of weapons. This is an endoscope suitable for internal inspection of weapons and equipment. It is suitable for firearms with a caliber of 0.22 in and larger. It is a visual barrel endoscope equipped with a 4.92-foot...

Send Inquiry

Product Introduction

Weapon endoscope is a special endoscope used to inspect
the internal structure of weapons.

This is an endoscope suitable for internal inspection of weapons and equipment. It is suitable for firearms with a caliber of 0.22 in and larger. It is a visual barrel endoscope equipped with a 4.92-foot cable for endoscope cleaning and inspection.

Weapon endoscopes usually consist of the following main parts

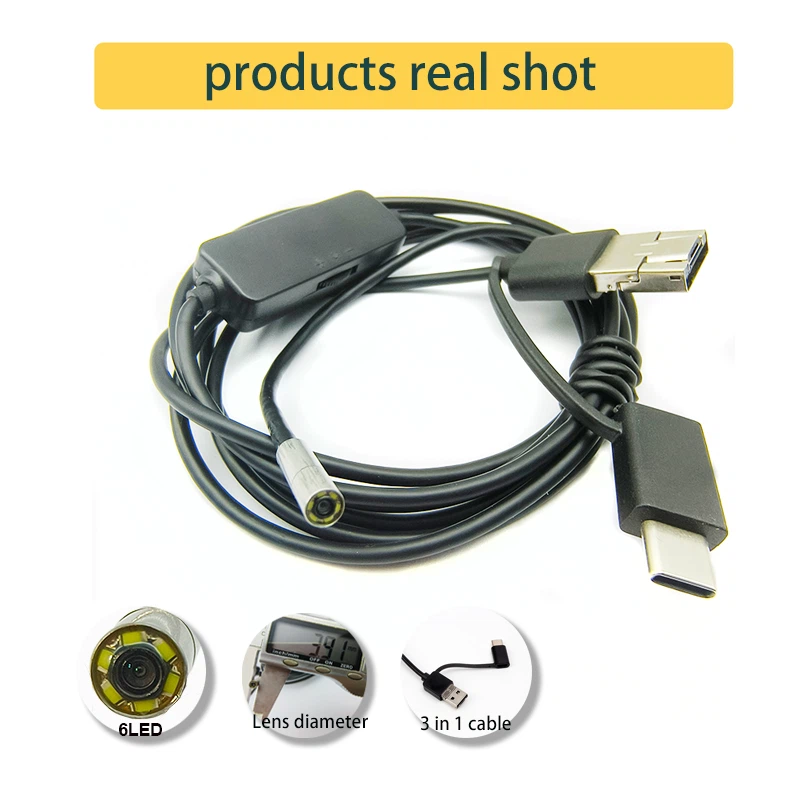

1. Slim Rifle Endoscope

This barrel endoscope is designed for inspecting gun barrels, firearms, and rifles. The 0.154-inch camera lens is suitable for firearms 0.22 caliber and larger.

2. High-definition Endoscope and Adjustable Light

This 1-megapixel endoscope provides clear 720P images and video with a resolution of 1280 x 720. Six adjustable LED lights provide ample illumination inside narrow gun barrels for better inspection.

3. Field of View and Depth of Field

FOV: 88°, Depth of Field: 0.197-1.18 inches

4. Flexible Cable

The 4.92-foot and 9.84-foot cables are as slim as the camera lens and easily pass through barrels of various calibers to inspect barrel cleanliness, corrosion, damage, and fouling. This is a practical gun maintenance tool that saves you time and money.

5. USB 3-in-1 port

Compatible with Windows and some Android systems (iOS not supported). Download the "amcap" or "USB CAMERA" app on your device. Connect via USB and start your barrel inspection.

688

Smaller Camera Diameter

This barrel inspection camera has a diameter of only 0.154 in, making it compatible with most barrels, guns, and rifles.

As long as the caliber is larger than 0.22 in, it can easily enter the rifle barrel to inspect for damage, dirt, and cleanliness.

How to use?

1. Download "amcap" or "USB CAMERA" on your smartphone or computer.
2. Connect the endoscope's USB port to your smartphone or computer's USB port.
3. Open the "amcap" app to start exporting images directly, no driver required.

The main functions of weapon endoscopes are

01.

Internal structural inspection

Used to inspect internal defects such as wear, corrosion, cracks, and foreign matter inside weapon barrels and cannons, thereby assessing the weapon's condition and lifespan.

02.

Quality control

Used during the weapon manufacturing process to inspect the machining quality of internal structures to ensure they meet design requirements.

03.

Fault diagnosis

Used to diagnose the cause of weapon malfunctions, such as barrel blockages and component damage.

04.

Maintenance

Used to inspect the cleanliness of weapons and provide guidance for maintenance work.
