Fov 88 Ent Endoscope Borescope
Ezon is a professional enterprise engaged in the development, manufacturing and sales of industrial endoscopes. Our company has many years of industry experience and technical strength, can provide customers with high quality products and excellent service.

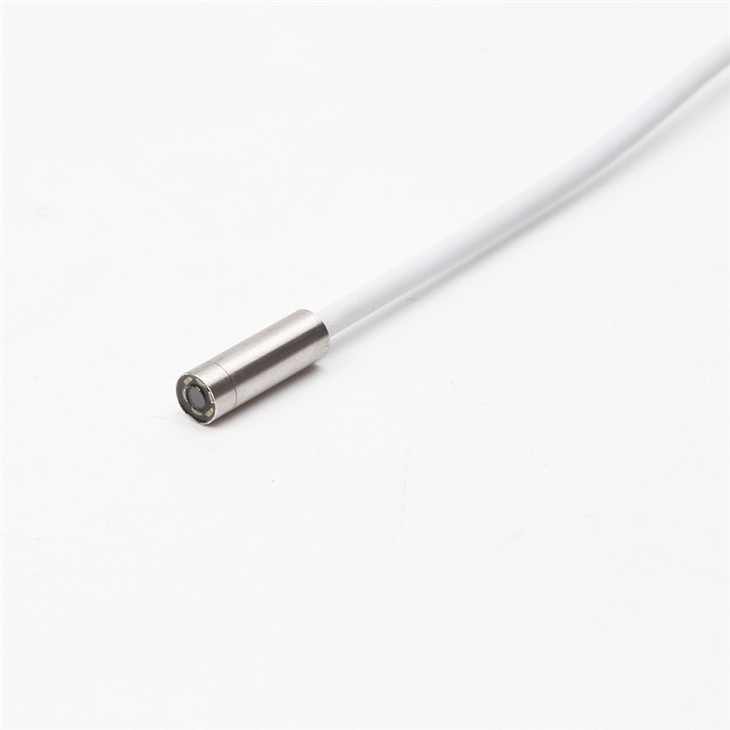

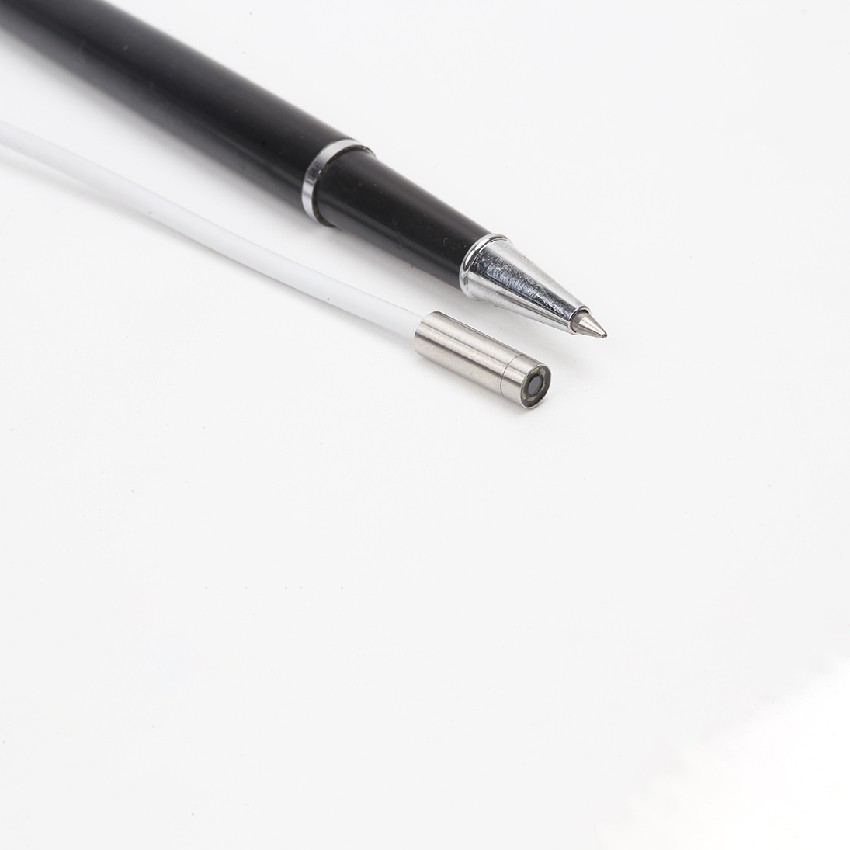

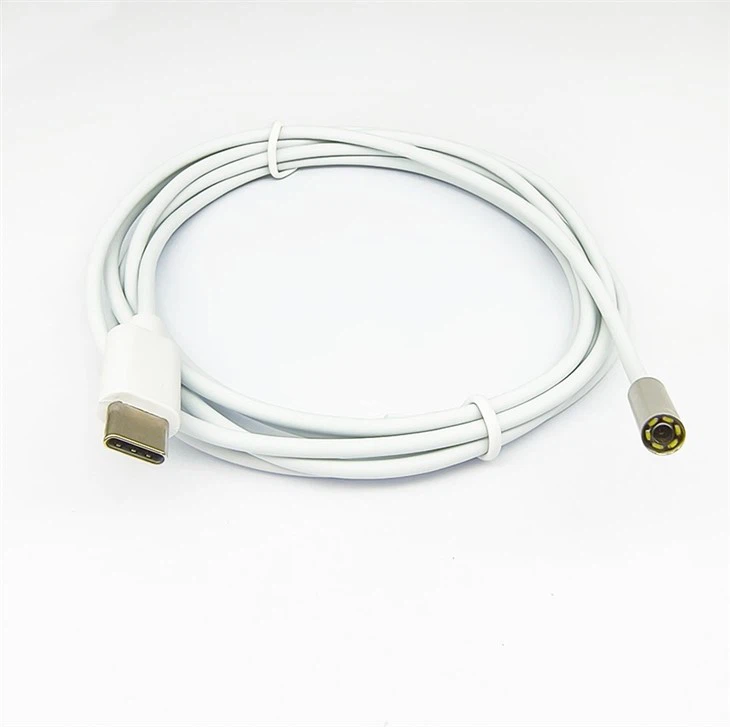

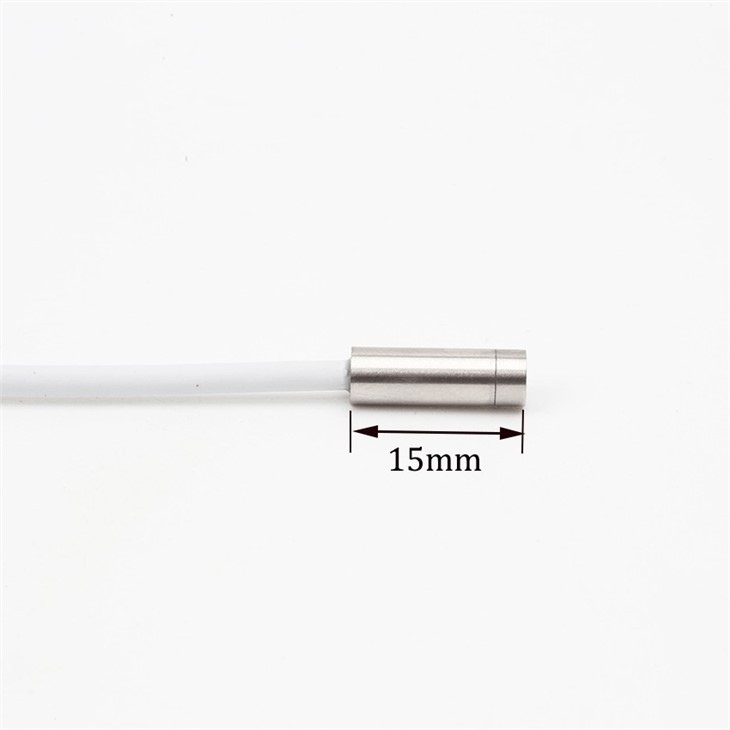

This is an endoscopic inspection mirror with a 1MP lens and a diameter of 4.5mm. It is directly connected to the Android phone interface through the Type-c interface of the cable, and the driver can be downloaded to directly view various tiny spaces. The field of view is 88 degrees, and the depth of field ranges from 5-30mm, which is suitable for close observation of small spaces.
|
Module No. |
EZ-EN45S-RT |
|
Sensor Type |
OV9734(1/9” ) |
|
Sensitivity |
1.0 V/(Lux·sec) |
|
Pixel Size |
1.4 μ m x 1.4μ m |
|
Video Stream Fomat |
MJPG ,YUY2 |
|
Max Resolution |
1280X720 |
|
Maximum Image Transfer Rate |
MJPG: 640X480 (30fps) 960X720 (30fps) 1280X720 (30fps)(default) YUY2: 640X480 (30fps) 960X720 (15fps) 1280X720 (10fps) |
|
S/N Ratio |
44dB |
|
Dynamic Range |
68DB |
|
Min Lux |
0.03Lux |
|
Lens Construction |
3P+IR |
|
FOV |
75°/88°/100°/140°（optional） |
|
Relative Illumination (Sensor) |
55% |
|
IR Filter |
650±10nm |
|
TV Distortion |
<-1% |
Equipped with 6 high-brightness LED lights at the lens of this product, even in dimly lit areas or overexposed external environments, the brightness can be adjusted with a cable-adjustable switch. The product lens adopts a waterproof design and can be used for inspection underwater
Through the borescope, you can easily check your electrical appliances, electronic equipment, and check whether there is any problem inside your car.
