Product Introduction
This is a 5MP high resolution endoscope camera and a high-quality industrial inspection equipment. The product uses imported chips, advanced optical technology and image processing technology, and high-definition, high-resolution image display. Products are widely used in industrial fields, including machinery manufacturing, aerospace, automobile manufacturing, electronics manufacturing and other industries.
Product advantages:
1. High definition and high resolution
This high resolution endoscope camera uses high-quality optical components and a high-definition digital camera to easily capture high-resolution, high-definition images and videos. High-quality images and videos can help engineers quickly and accurately inspect the internal structure and defects of workpieces, improving production efficiency and quality.
2. Auto focus
Auto focus, easy to use, the product has been adjusted to the best focus before leaving the factory, you can use it directly without adjusting the focus.
3. Convenient operation and control

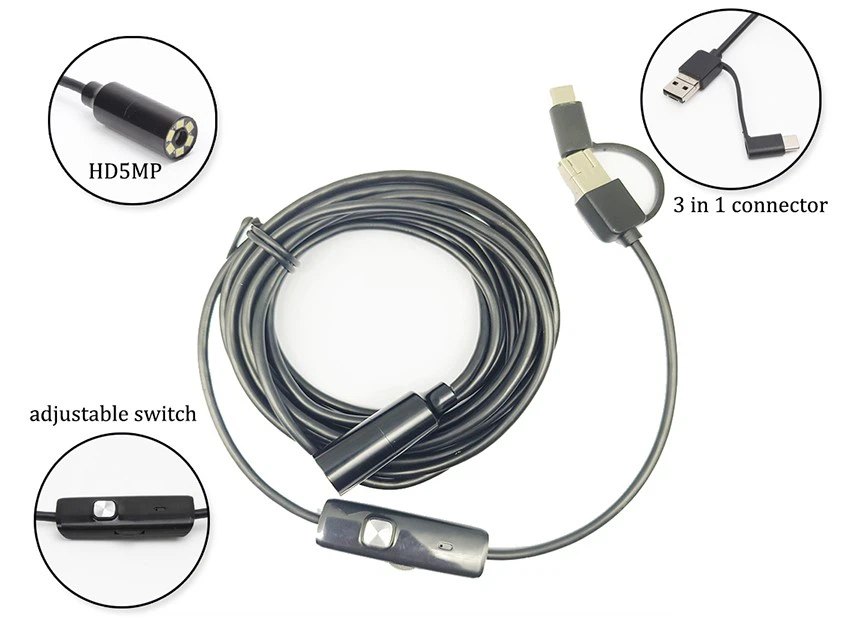

The product is easy to operate. The 3-in-1 connecting cable can be directly connected to a laptop, tablet or mobile phone, allowing operators to easily adjust camera parameters, take photos, record videos and save data.
4. Good adaptability and durability
The product is made of high-strength and durable stainless steel material. The lens is IP67 waterproof and anti-corrosion, and can work for a long time in harsh industrial environments.
product Parameter(specification)
|
Module No. |
EZ5MP AF |
|
Sensor Type |
OV5693(1/4” ) |
|
Sensitivity |
780MV/Lux·sec |
|
Pixel Size |
1.4 μ m x 1.4μ m |
|
Video Stream Fomat |
MJPEG/YUY2 |
|
Max Resolution |
2592X1944 |
|
Maximum Image Transfer Rate |
MJPG:30fps 640X480 800X600 1280X720 1280X960 1920X1080 1600X1200 2592X1944 YUY2:30fps 640X480 5FPS 1280X720 1920X1080 |
|
Data Format |
640X480,800X600 1280X720,1920X1080 2592X1944 |
|
S/N Ratio |
36dB |
|
Dynamic Range |
71.6DB |
|
Min Lux |
0.03Lux |
|
TV Distortion |
<-1% |
|
AGC/AEC/Whiter balance |
Auto |
|
Module Size |
28.6mm X12.5mmX12.5mm |
product feature and application
This high resolution endoscope camera uses imported chips, advanced optical technology and image processing technology to display high-definition, high-resolution images. Products are widely used in industrial fields, including machinery manufacturing, aerospace, automobile manufacturing, electronics manufacturing and other industries. Its high definition better improves the picture
